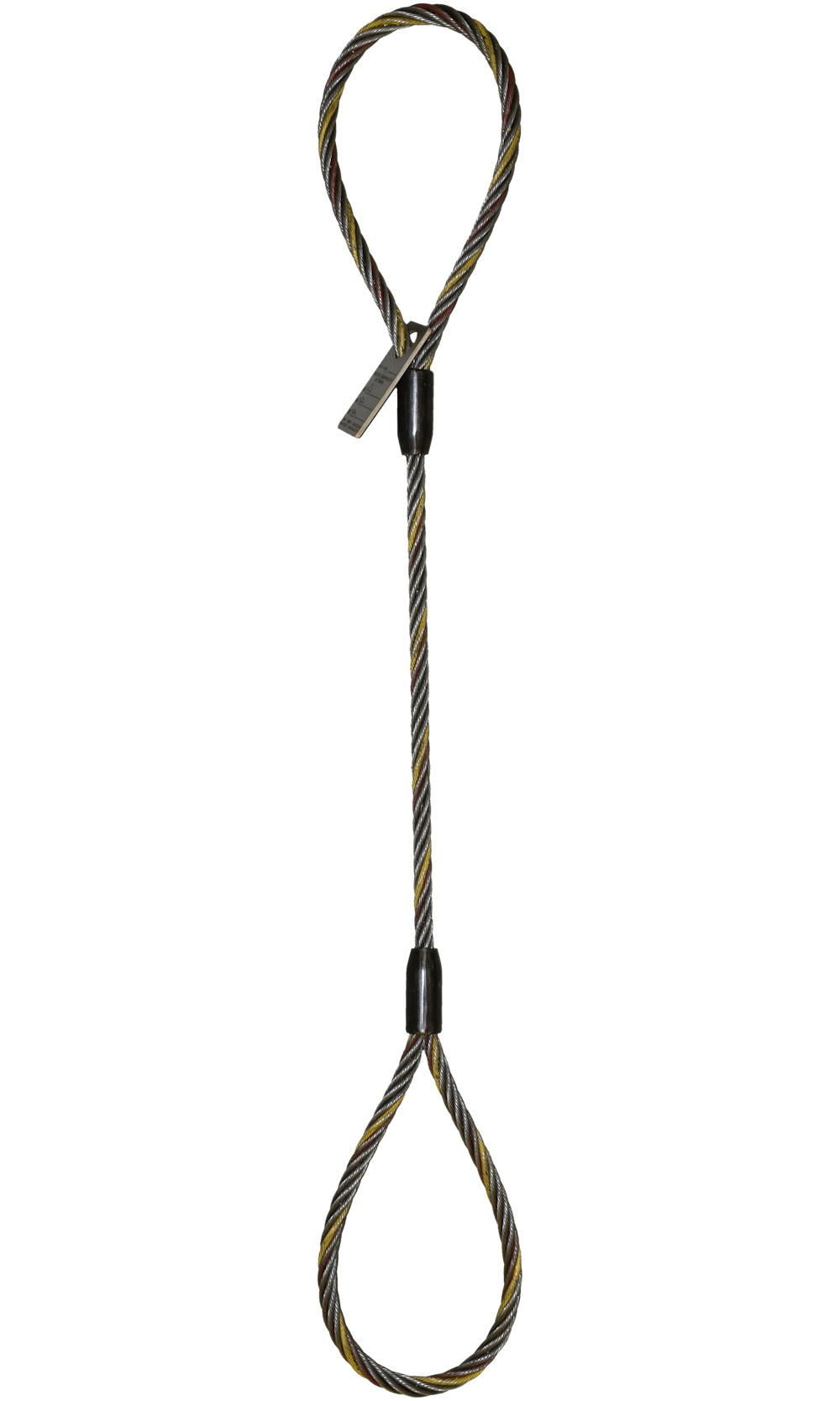

| EYE & EYE EIPS IWRC WIRE ROPE SLINGS | |||
|---|---|---|---|
| Rope Diameter | Working Load Limit (Tons) | ||
| Vertical | Choker | 90° Basket | |
| 1/4" | 0.65 | 0.48 | 1.3 |
| 5/16" | 1 | 0.74 | 2 |
| 3/8" | 1.4 | 1.1 | 2.9 |
| 7/16" | 1.9 | 1.4 | 3.9 |
| 1/2" | 2.5 | 1.9 | 5.1 |
| 9/16" | 3.2 | 2.4 | 6.4 |
| 5/8" | 3.9 | 2.9 | 7.8 |
| 3/4" | 5.6 | 4.1 | 11 |
| 7/8" | 7.6 | 5.6 | 15 |
| 1" | 9.8 | 7.2 | 20 |
| 1 1/8" | 12 | 9.1 | 24 |
| 1 1/4" | 15 | 11 | 30 |
| 1 3/8" | 18 | 13 | 36 |
| 1 1/2" | 21 | 16 | 42 |
| 1 3/4" | 28 | 21 | 57 |
| 2" | 37 | 28 | 73 |

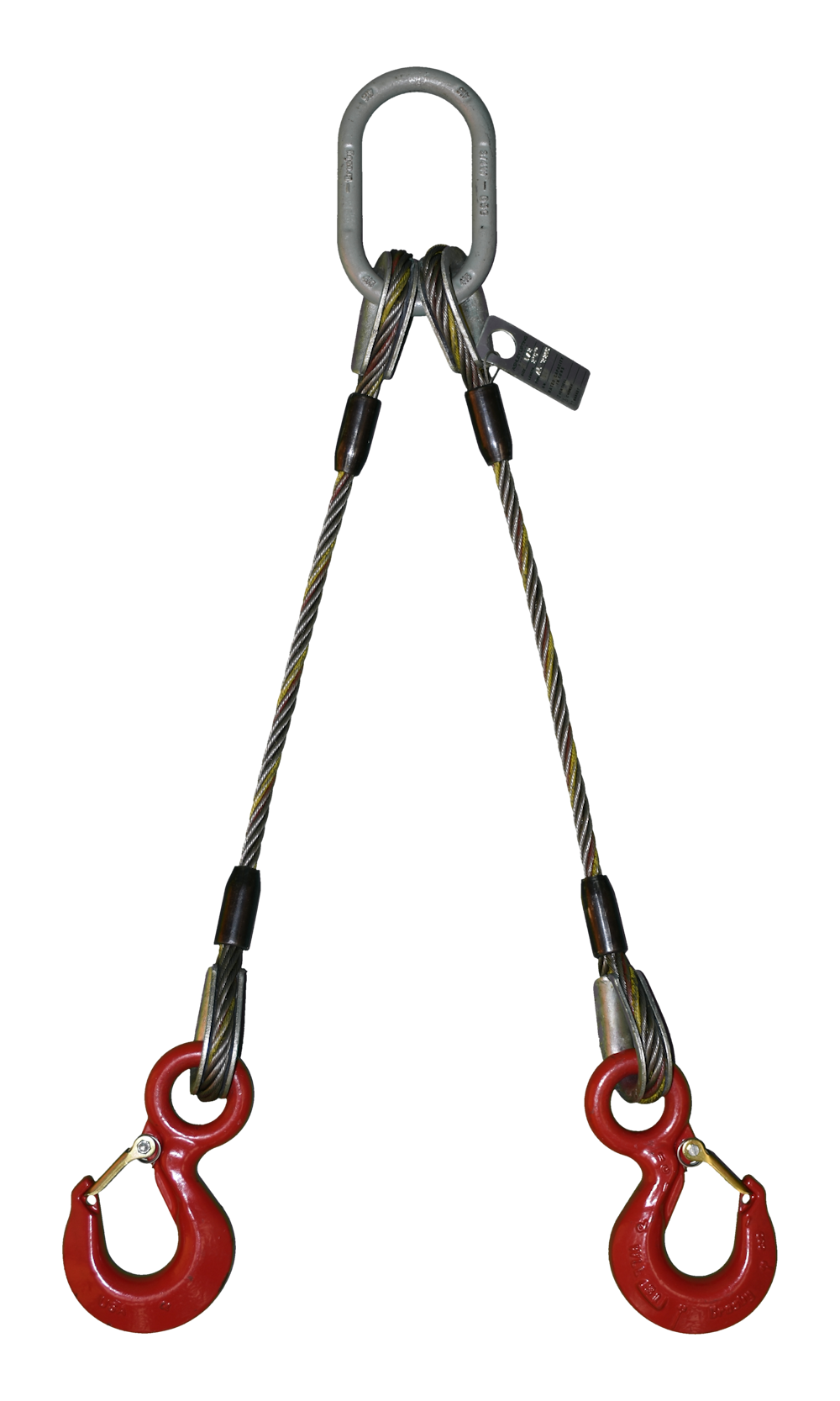

| TWO LEG EIPS IWRC WIRE ROPE SLINGS | |||
|---|---|---|---|
| Rope Diameter | Working Load Limit (Tons) | ||
| 60° | 45° | 30° | |
| 1/4" | 1.1 | 0.91 | 0.65 |
| 5/16" | 1.7 | 1.4 | 1 |
| 3/8" | 2.5 | 2 | 1.4 |
| 7/16" | 3.4 | 2.7 | 1.9 |
| 1/2" | 4.4 | 3.6 | 2.5 |
| 9/16" | 5.5 | 4.5 | 3.2 |
| 5/8" | 6.8 | 5.5 | 3.9 |
| 3/4" | 9.7 | 7.9 | 5.6 |
| 7/8" | 13 | 11 | 7.6 |
| 1" | 17 | 14 | 9.8 |
| 1 1/8" | 21 | 17 | 12 |
| 1 1/4" | 26 | 21 | 15 |
| 1 3/8" | 31 | 25 | 18 |
| 1 1/2" | 37 | 30 | 21 |

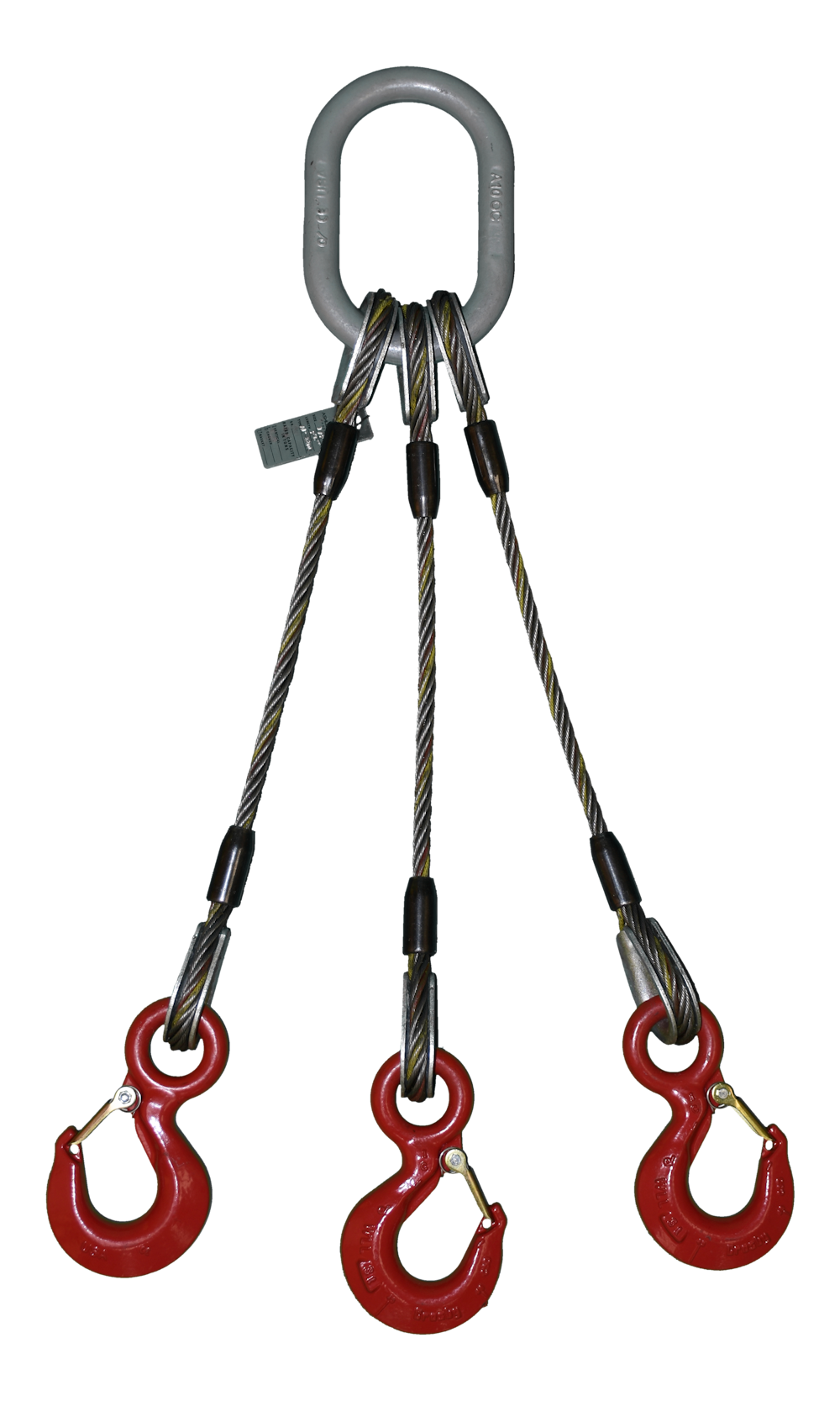

| THREE LEG EIPS IWRC WIRE ROPE SLINGS | |||
|---|---|---|---|
| Rope Diameter | Working Load Limit (Tons) | ||
| 60° | 45° | 30° | |
| 1/4" | 1.7 | 1.4 | 0.97 |
| 5/16" | 2.6 | 2.1 | 1.5 |
| 3/8" | 3.7 | 3 | 2.2 |
| 7/16" | 5 | 4.1 | 2.9 |
| 1/2" | 6.6 | 5.4 | 3.8 |
| 9/16" | 8.3 | 6.8 | 4.8 |
| 5/8" | 10 | 8.3 | 5.9 |
| 3/4" | 15 | 12 | 8.4 |
| 7/8" | 20 | 16 | 11 |
| 1" | 26 | 21 | 15 |
| 1 1/8" | 31 | 26 | 18 |
| 1 1/4" | 38 | 31 | 22 |
| 1 3/8" | 46 | 38 | 27 |
| 1 1/2" | 55 | 45 | 32 |

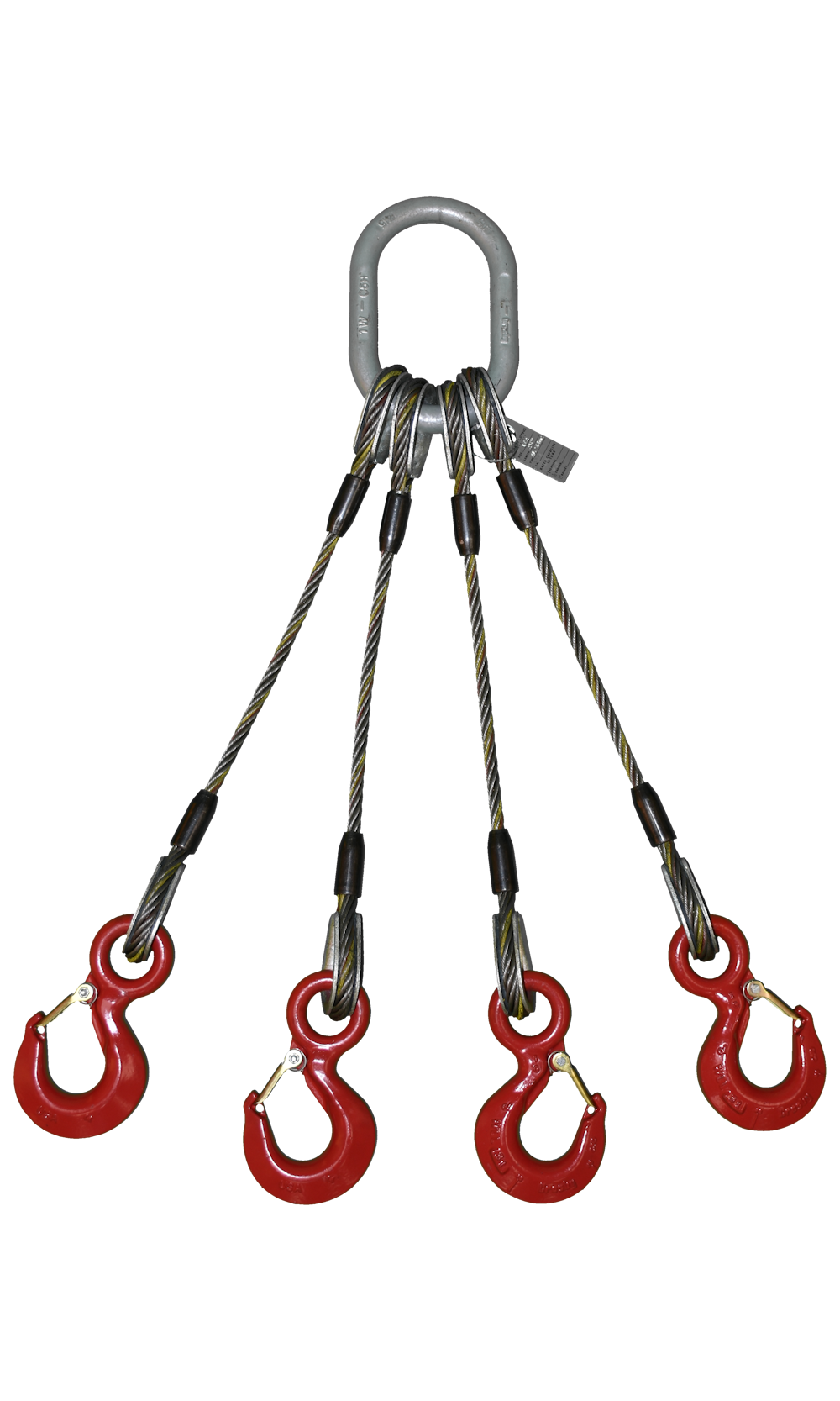

| FOUR LEG EIPS IWRC WIRE ROPE SLINGS | |||
|---|---|---|---|
| Rope Diameter | Working Load Limit (Tons) | ||
| 60° | 45° | 30° | |
| 1/4" | 2.2 | 1.8 | 1.3 |
| 5/16" | 3.5 | 2.8 | 2 |
| 3/8" | 5 | 4.1 | 2.9 |
| 7/16" | 6.7 | 5.5 | 3.9 |
| 1/2" | 8.8 | 7.1 | 5.1 |
| 9/16" | 11 | 9 | 6.4 |
| 5/8" | 14 | 11 | 7.8 |
| 3/4" | 19 | 16 | 11 |
| 7/8" | 26 | 21 | 15 |
| 1" | 34 | 28 | 20 |
| 1 1/8" | 42 | 34 | 24 |
| 1 1/4" | 51 | 42 | 30 |
| 1 3/8" | 62 | 50 | 36 |
| 1 1/2" | 73 | 60 | 42 |
