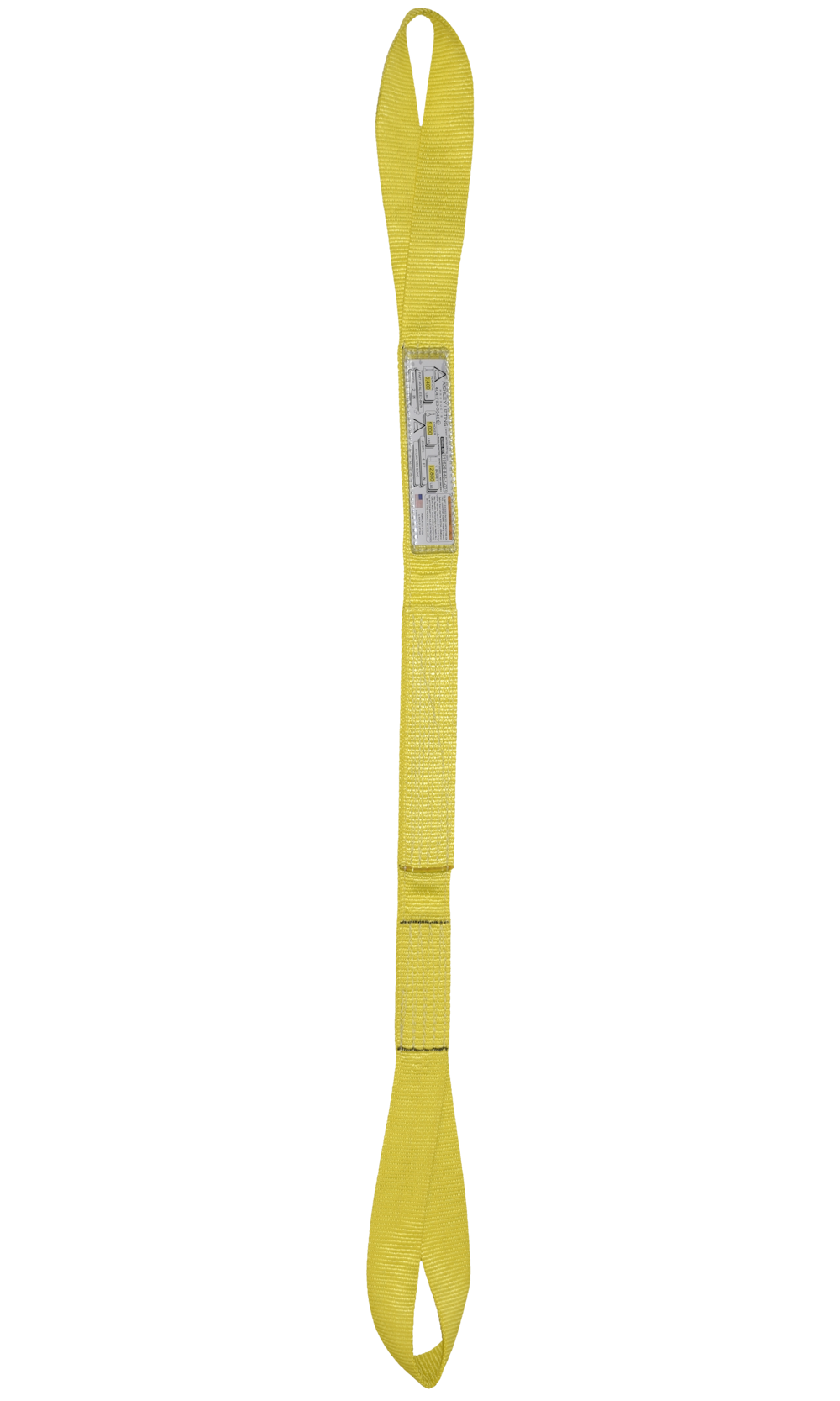

Type 4 Twisted Eye
Type 3 Flat Eye

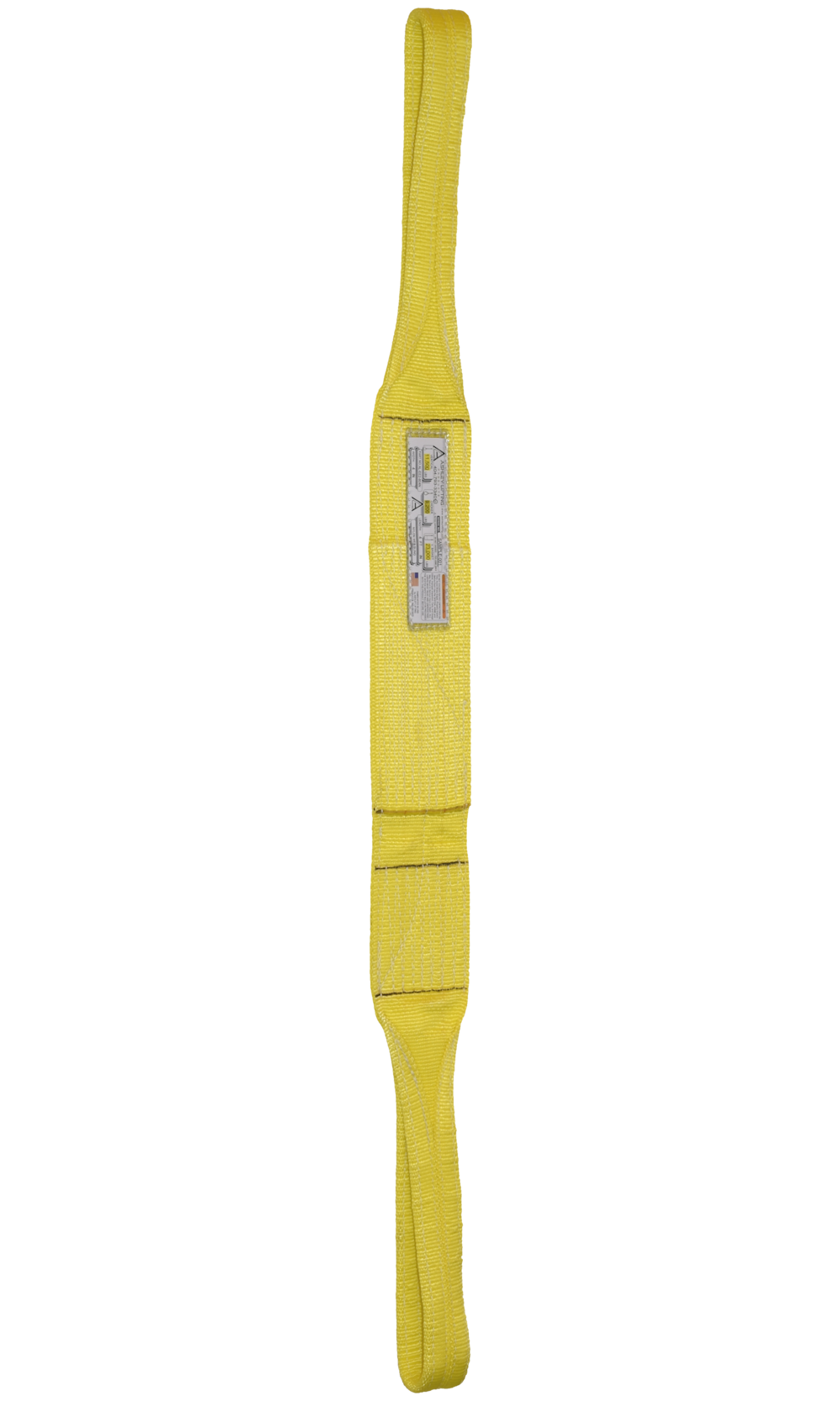

Type 3 Flat Eye Tapered
| EYE & EYE WEB SLINGS ( TYPE 3 & 4 ) |
|||
|---|---|---|---|
| Part Number | Working Load Limit (lbs.) | ||
| Vertical | Choker | 90° Basket | |
| 1 Ply | |||
| EE1-801N | 1,600 | 1,250 | 3,200 |
| EE1-802N | 3,200 | 2,500 | 6,400 |
| EE1-803N | 4,800 | 3,800 | 9,600 |
| EE1-804N | 6,400 | 5,000 | 12,800 |
| EE1-805N | 8,000 | 6,400 | 16,000 |
| EE1-806N | 9,600 | 7,700 | 19,200 |
| EE1-808N | 12,800 | 10,200 | 25,600 |
| EE1-810N | 16,000 | 12,800 | 32,000 |
| EE1-812N | 19,200 | 15,400 | 38,400 |
| 2 Ply | |||
| EE2-801N | 3,200 | 2,500 | 6,400 |
| EE2-802N | 6,400 | 5,000 | 12,800 |
| EE2-803N | 8,600 | 6,900 | 17,200 |
| EE2-804N | 11,500 | 9,200 | 23,000 |
| EE2-805N | 13,600 | 10,900 | 27,200 |
| EE2-806N | 16,300 | 13,000 | 32,600 |
| EE2-808N | 19,200 | 15,400 | 38,400 |
| EE2-810N | 22,400 | 17,900 | 44,800 |
| EE2-812N | 26,900 | 21,500 | 53,800 |
| 3 Ply | |||
| EE3-801N | 4,100 | 3,300 | 8,200 |
| EE3-802N | 8,300 | 6,600 | 16,600 |
| EE3-803N | 12,500 | 10,000 | 25,000 |
| EE3-804N | 16,000 | 12,800 | 32,000 |
| EE3-805N | 19,200 | 15,400 | 38,400 |
| EE3-806N | 23,000 | 18,400 | 46,000 |
| 4 Ply | |||
| EE4-801N | 5,000 | 4,000 | 10,000 |
| EE4-802N | 10,000 | 8,000 | 20,000 |
| EE4-803N | 14,900 | 11,900 | 29,800 |
| EE4-804N | 19,800 | 15,800 | 39,600 |
| EE4-805N | 24,800 | 19,800 | 49,600 |
| EE4-806N | 29,800 | 23,800 | 59,600 |

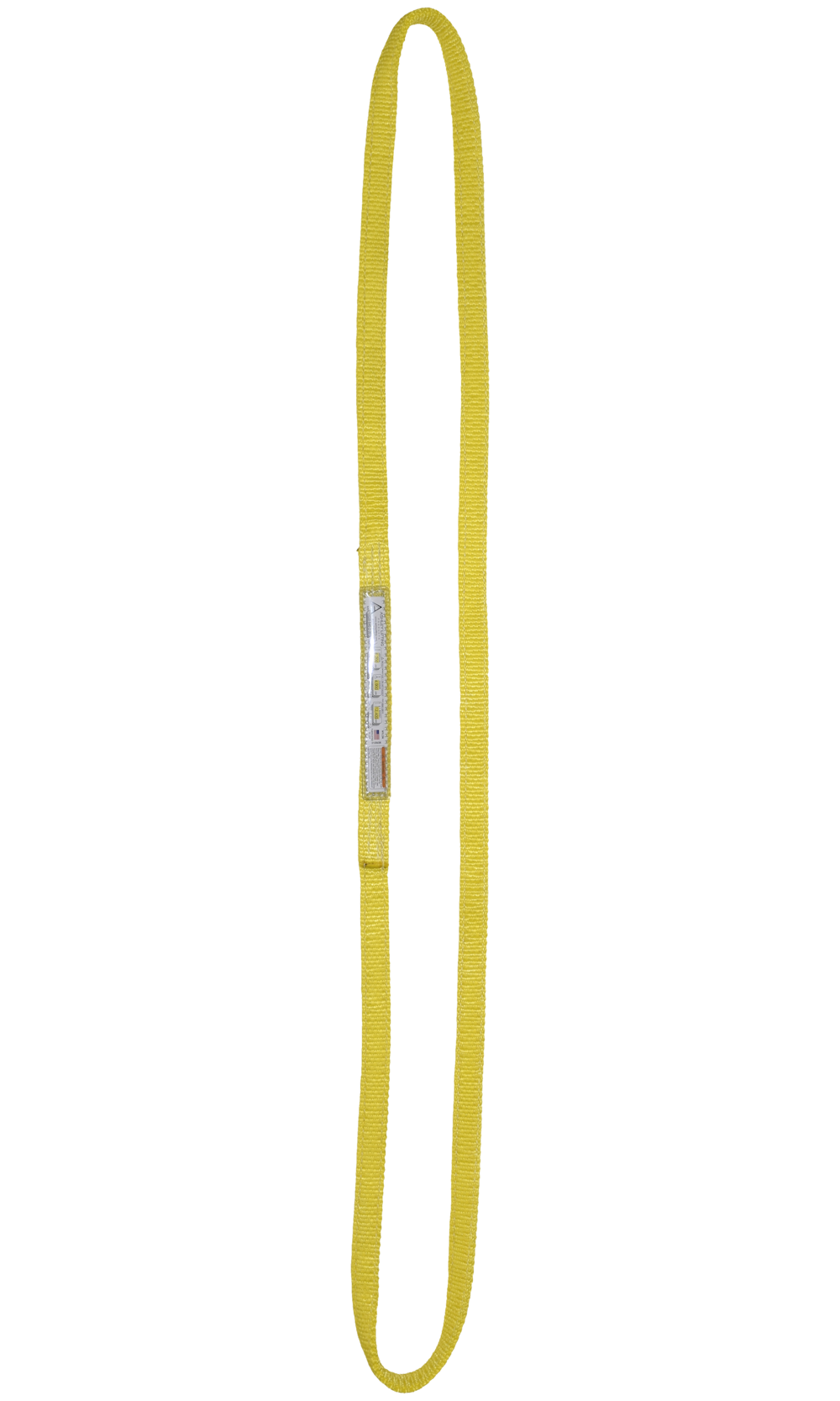

Type 5 Endless
| ENDLESS WEB SLINGS ( TYPE 5 ) |
|||
|---|---|---|---|
| Part Number | Working Load Limit (lbs.) | ||
| Vertical | Choker | 90° Basket | |
| 1 Ply | |||
| EN1-801N | 3,200 | 2,500 | 6,400 |
| EN1-802N | 6,400 | 5,000 | 12,800 |
| EN1-803N | 8,600 | 6,900 | 17,200 |
| EN1-804N | 11,500 | 9,200 | 23,000 |
| EN1-805N | 13,600 | 10,900 | 27,200 |
| EN1-806N | 16,300 | 13,000 | 32,600 |
| EN1-808N | 19,200 | 15,400 | 38,400 |
| EN1-810N | 22,400 | 17,900 | 44,800 |
| EN1-812N | 26,900 | 21,500 | 53,800 |
| 2 Ply | |||
| EN2-801N | 6,200 | 4,900 | 12,400 |
| EN2-802N | 12,400 | 9,900 | 24,800 |
| EN2-803N | 16,300 | 13,000 | 32,600 |
| EN2-804N | 20,700 | 16,500 | 41,400 |
| EN2-805N | 24,500 | 19,600 | 49,000 |
| EN2-806N | 30,500 | 24,400 | 61,000 |
| EN2-808N | 40,000 | 32,000 | 80,000 |
| EN2-810N | 47,000 | 37,600 | 94,000 |
| EN2-812N | 56,000 | 44,800 | 112,000 |
| 3 Ply | |||
| EN3-801N | 8,000 | 6,400 | 16,000 |
| EN3-802N | 16,000 | 12,800 | 32,000 |
| EN3-803N | 21,500 | 17,200 | 43,000 |
| EN3-804N | 28,700 | 23,000 | 57,400 |
| EN3-805N | 34,000 | 27,200 | 68,000 |
| EN3-806N | 40,700 | 32,500 | 81,400 |
| 4 Ply | |||
| EN4-801N | 10,000 | 8,000 | 20,000 |
| EN4-802N | 19,800 | 15,800 | 39,600 |
| EN4-803N | 26,700 | 21,300 | 53,400 |
| EN4-804N | 35,600 | 28,400 | 71,200 |
| EN4-805N | 42,200 | 33,700 | 84,400 |
| EN4-806N | 50,500 | 40,400 | 101,000 |
